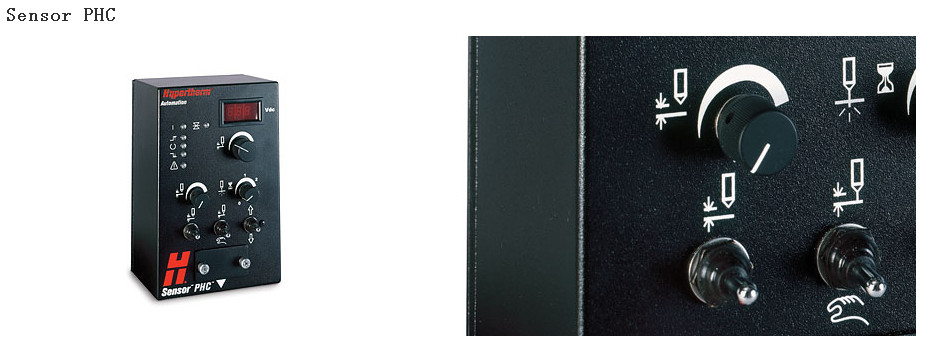

The Sensor PHC is an easy-to-use and reliable voltage-sensing height control for conventional plasma applications. The benefits realized are substantial in terms of:
- Consumable life improvement
- Improved cut quality
- Reduced operator intervention
The Sensor PHC offers easy installation on new or existing conventional plasma cutting tables with any CNC and a broad range of plasma systems. Available in several application-specific configurations, the Sensor PHC delivers improved performance at a reduced cost compared to other height control solutions.
Better consumable lifeSpatter during piercing presents a threat to the nozzle and shield.Setting the height of the torch higher during piercing protects the consumables by moving them away from the spatter.The Sensor PHC offers programmable and different settings for both pierce and cut heights to automatically position the torch.
Improved cut quality performanceThe Sensor PHC offers improved quality over the entire life of the consumables.The following cut-edge angle dimensions were measured at the beginning and end of a 450 pierce-and-cut test for both setups.
| |
1st cut sample,
maximum kerf angle |
451st cut sample,
maximum kerf angle |
| No PHC |
4° |
11° |
| Sensor PHC |
3° |
4° |
| Angles were measured on all four sides, all four samples. The lower the number, the better the cut quality. The angles will vary with thickness |
Magnetic breakawayTethered magnetic breakaway for consistent positioning during cutting and retention after collision or consumable change.
Powerful magnets and keyed mounting plate for fast and repeatable repositioning of the torch.
Specifications
| Maximum speed |
5120 mm/m (200 ipm) |
| Range of motion |
150 mm (6") |
| Arc voltage set-point |
50 V – 210 V arc voltage set-point for arc-voltage feedback; accurate to 1 arc-volt |
| |
Ohmic contact and stall-force initial height sense |
| |
On/off signal provided by CNC |
* Information subject to change without notice.
** User supplied display and keyboard are required |
